5S10A Battery Management System (BMS) For 16V LiFePO4 Battery Packs

Name: 5S10A Battery Management System BMS For 16V LiFePO4 Battery Packs
Brand: BEST
Price: 1 USD

Brand Name : BEST

Model Number : BEST-D110

Certification : CE

Place of Origin : SHENZHEN

MOQ : 1000PCS

Payment Terms : TT IN ADVANCE

Supply Ability : 10000PCS/DAY

Delivery Time : 7 DAYS AFTER RECEIVE PAYMENT

Packaging Details : EXPORT WOODEN BOX

Contact Now

Features and Benefits

1.Protection Circuit Module for 16V 5S LiFePO4 battery pack;

2.PCM/PCB applies for 5 cells LiFePO4 battery pack;

3.To prevent the battery packs from overcharge,overdischarge,over current, over temperature ,short circuit ;

4.With cell balance/equilibrium function;

5.Compatible with all the LiFePO4 cells;

6.How balancing function works? after battery pack is fully charged. PCM will detect each cell's voltage and trim higher voltage down until other cells reach the same voltage level. Therefore, it helps cells have longer service life.

Specifications

Item	Contents		Criteria
1	Model	BEST-D110	5S-10A working current
2	Voltage	Charging voltage	18V
3	Current	Maximal continuous charging current	5A
		Maximal continuous discharging current	10A
		Current consumption	≤20μA
4	Overcharge Protection	Over charge detection voltage	3.6V~3.9V(Adjustable)
		Over charge detection delay time	0.5S~2S
		Over charge release voltage	3.5V~3.8V(Adjustable)
5	Over Discharge Protection	Over discharge detection voltage	2.0V~2.5V(Adjustable)
		Over discharge detection delay time	50~200mS
		Over discharge release voltage	2.0V~2.5V(Adjustable)
6	Over Current Protection	Over current detection voltage	0.1V~0.2V(Adjustable)
		Over current detection current	adjustable
		Detection delay time	5~20mS
		Release condition	Cut load,automatically recover
7	Short Circuit Protection	Detection condition	Exterior shot circuit
		Detection delay time	200~500uS
		Release condition	Cut load,automatically recover
8	Balance/Equilibrium	Balance voltage for single cell	3.60V±0.025V
8	Balance/Equilibrium	Balance current for single cell	36mA±5mA
9	Resistance	Inner resistance	≤20mΩ
10	Temperature	Operating temperature range	-40~+85°C
10	Temperature	Storage temperature range	-20~ +125°C
11	Size (LWT)	56mm * 46mm * 7.5mm

China 5S10A Battery Management System (BMS) For 16V LiFePO4 Battery Packs wholesale

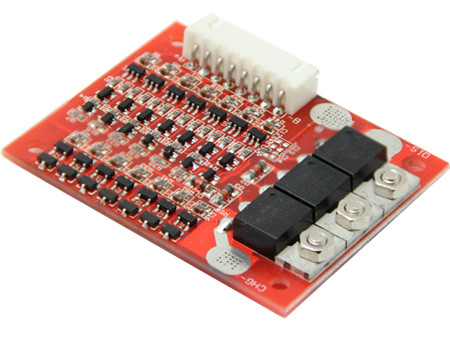

5S10A Battery Management System (BMS) For 16V LiFePO4 Battery Packs Images
